Designing a trimmer charging stand
Moving always means getting used to the new surroundings. In this special case, I took over a cabinet in our bathroom for my stuff. It is more bathroom space than I ever used before and my stuff just sprawls out.
One thing which is constantly on the verge of falling out is my beard trimmer. It has a round shape, so it is prone to rolling around and needs a lot of space lying around. So I designed a stand for it.
Design Process
My requirements where simple:
- The stand should hold the trimmer upright
- It should stand securely
- It should allow charging while in upright position (I don't want it to use more space while charging)
Drawing the trimmer felt weirdly phallic...

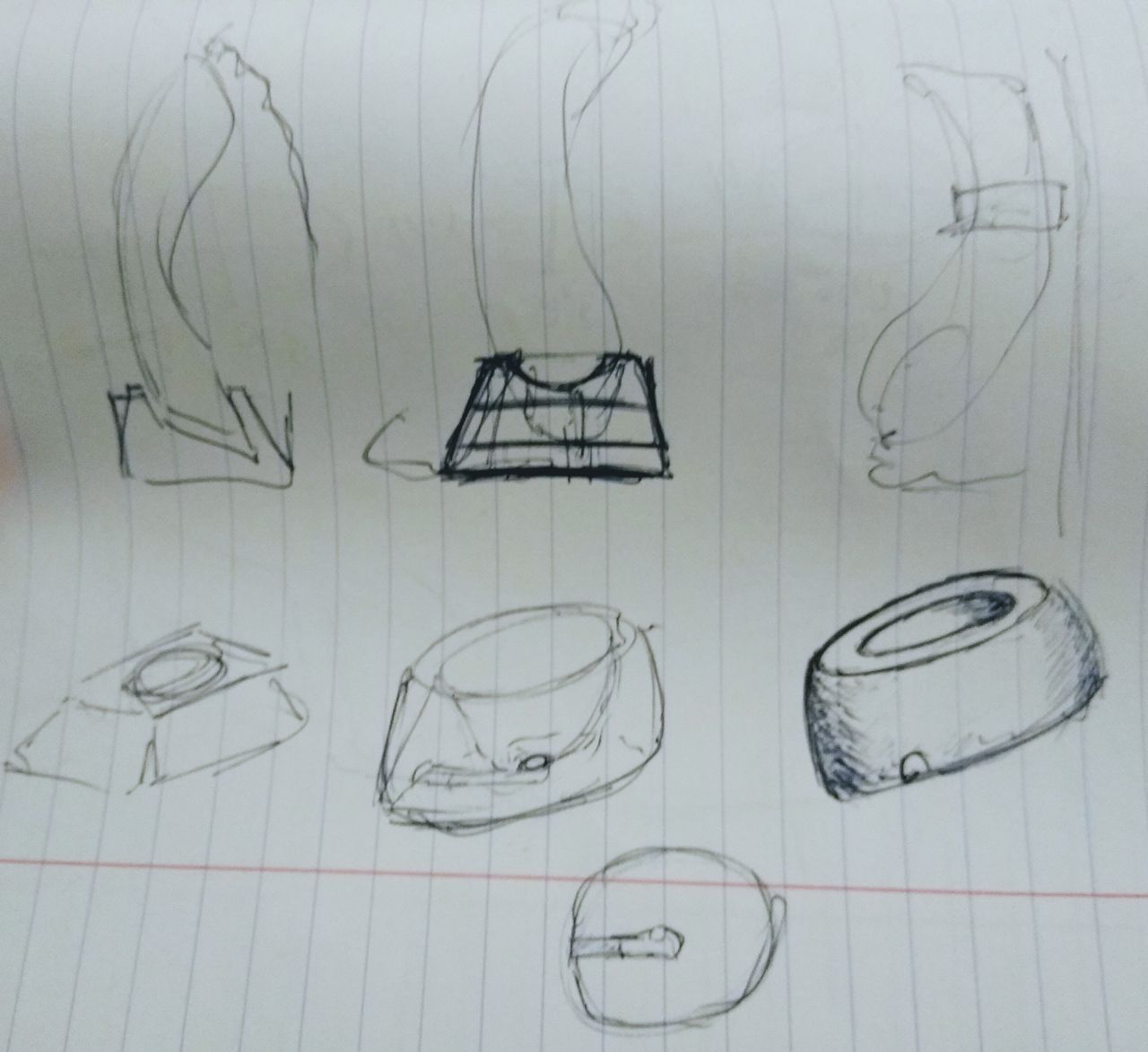

So I doodled a bit and the main ideas which came to me were
- a Y-shaped fork on which the trimmer could hang or
- a cone with an indentation in the shape of the trimmer, with an opening in the bottom for the charging cable. The latter appealed to me more. So I fired up OpenSCAD and modeled a simple cone as a starting point.

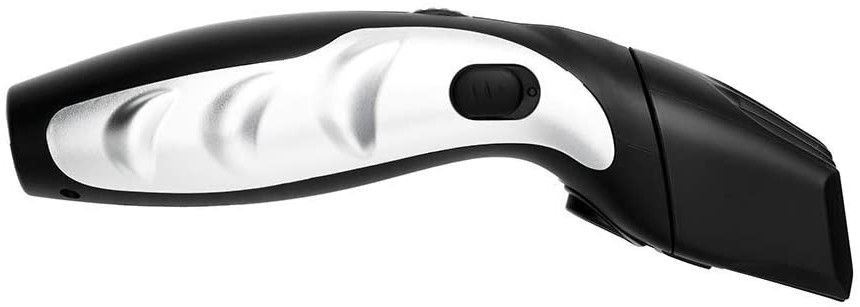

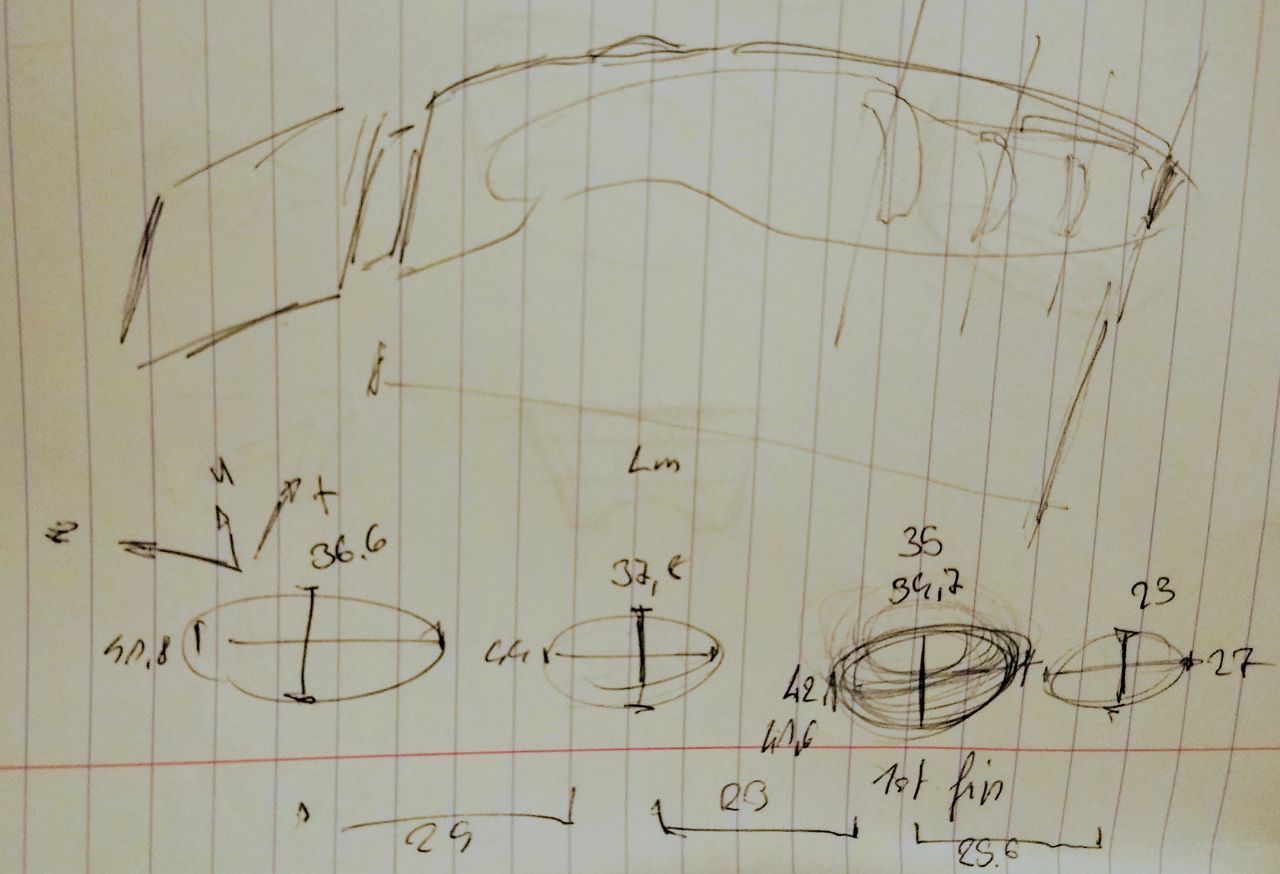

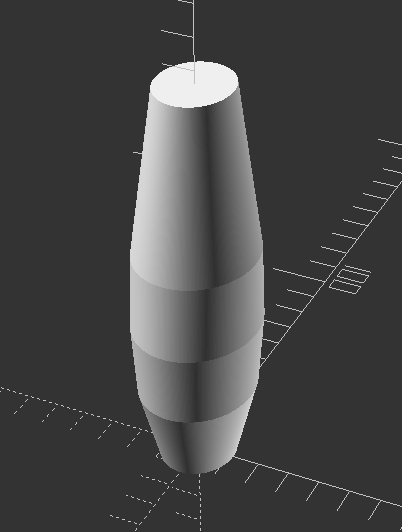

The trimmer has a rather organic form with some bumps in the side for a more ergonomic grip. I had no interest in modelling it down to the tiniest detail, so I just measured the outer edges of the bumps and approximated it with some cylinders.
Not exactly a datasheet, but enough to get going...
I didn't bother modelling the head of the trimmer in great detail, since it had no relevance for the stand. I just added another cylinder to give me a rough length estimate.

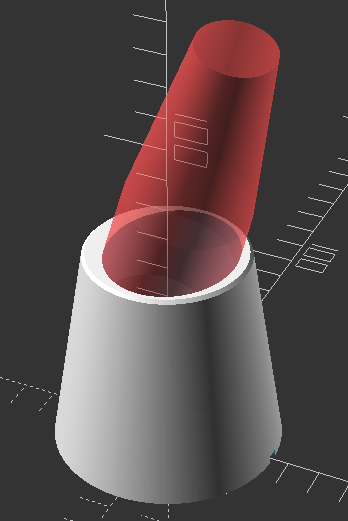

I then subtracted the trimmer model from my stand. Since the trimmer is shaped like a banana, I held it in a close to upright position and guesstimated the offset angle for my model to be around 15°, since I currently have a broken foot and was to lazy to get up and get a proper measurement tool. Luckily, the first print showed it was a pretty much perfect estimation.
Making space for the trimmer

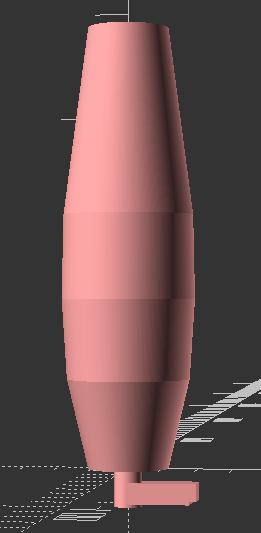

Next I tackled the charger. After designing the outline, I added it to the trimmer model to make sure it had the right angle as well.
I also added a cable canal at the bottom.

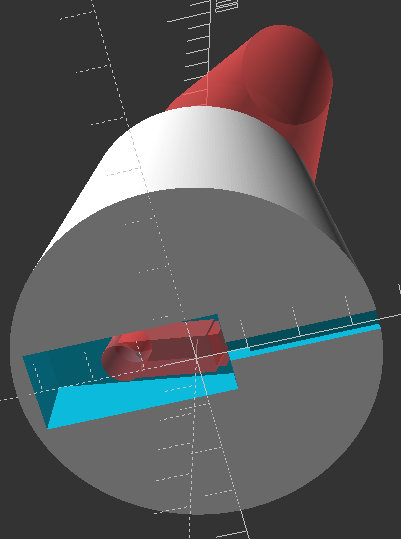

To get everything lined up, I used the # function in OpenSCAD. You can put it in front of any part, and it gets rendered in the preview as shiny and transparent.
I often use it to highlight the shapes I'm cutting out from objects so I don't have to guess their position from their negatives.
Getting the charging plug in.

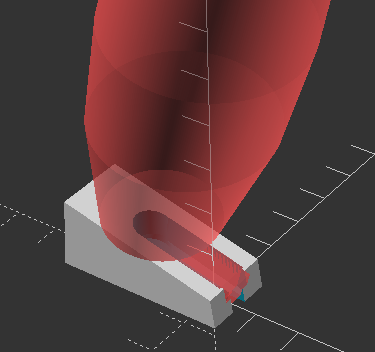

Since I had to get the charger plug in the right position and hold it there, I then designed a wedge shape. I just eyeballed the outline with a polygon and extruded it to be wider than the plug. It was used to create two parts: The bottom plug holder part, an intersection of my wedge and holder, and the top part, basically most of the cone shape minus the wedge. Since my printer doesn't have perfect precision, I scaled the wedge cutout to 102% in all directions, which also turned out to be a good guess.
Plug holder.
Printing and assembly

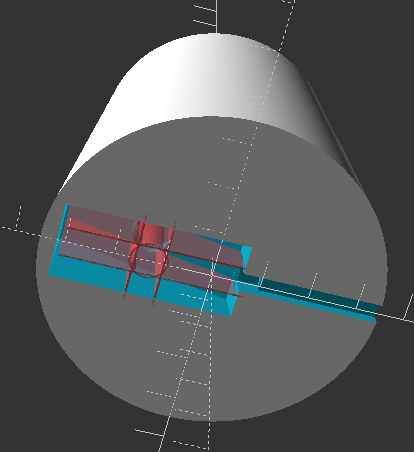

I quickly modeled in some manual supports as well for the overhang area where I cut out the bottom part.
Supports. For easy removal they only connect in Z direction

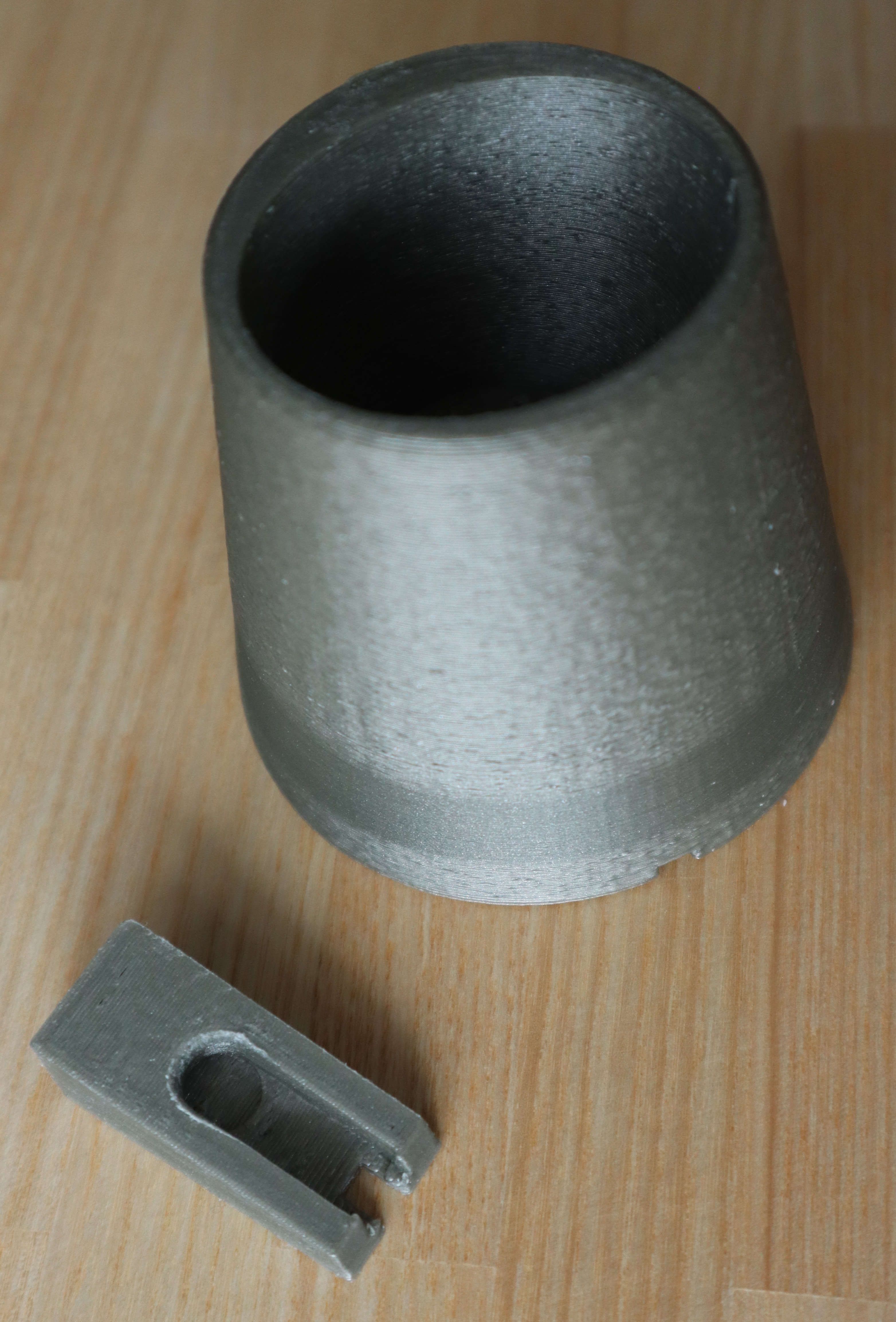

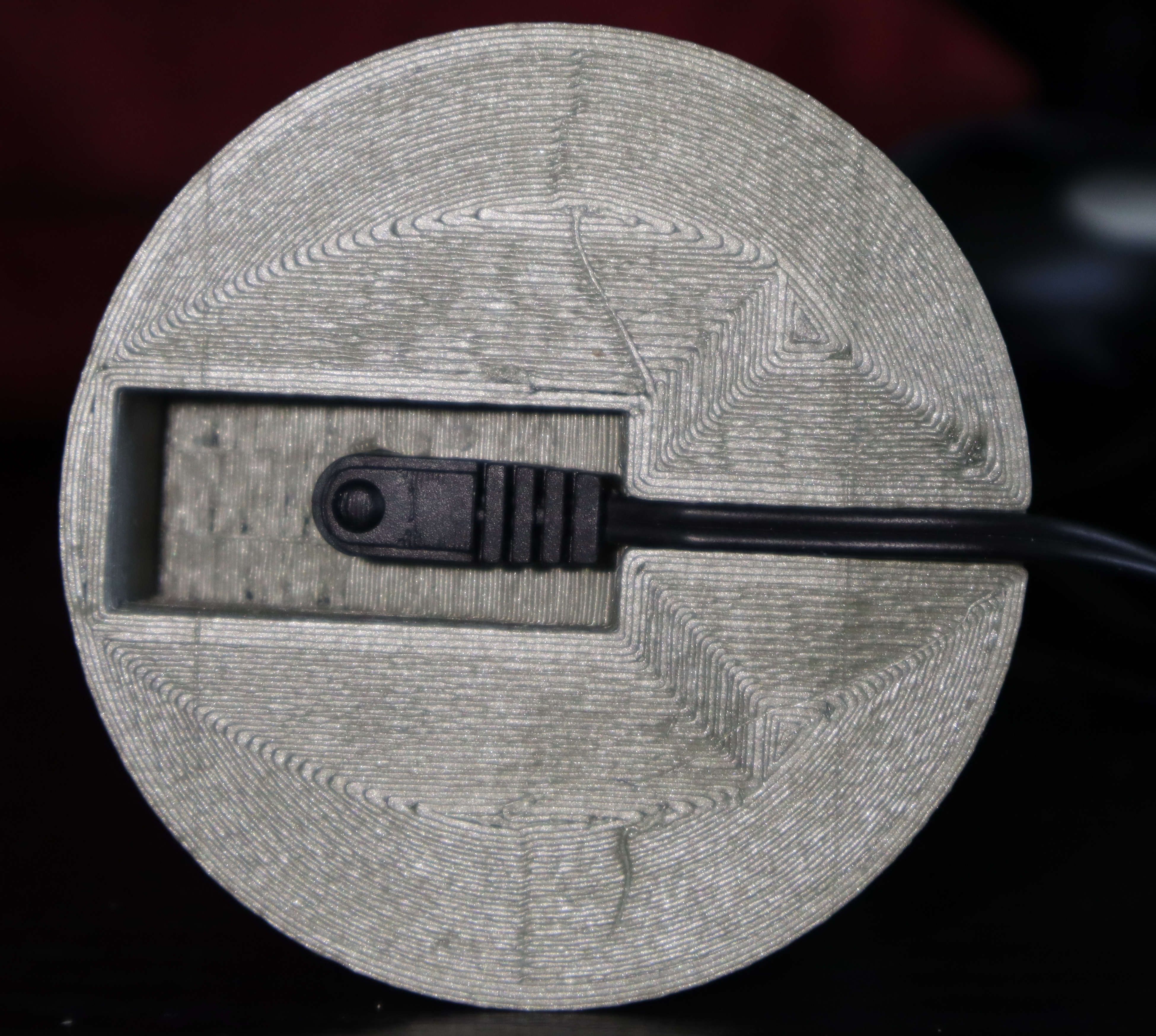

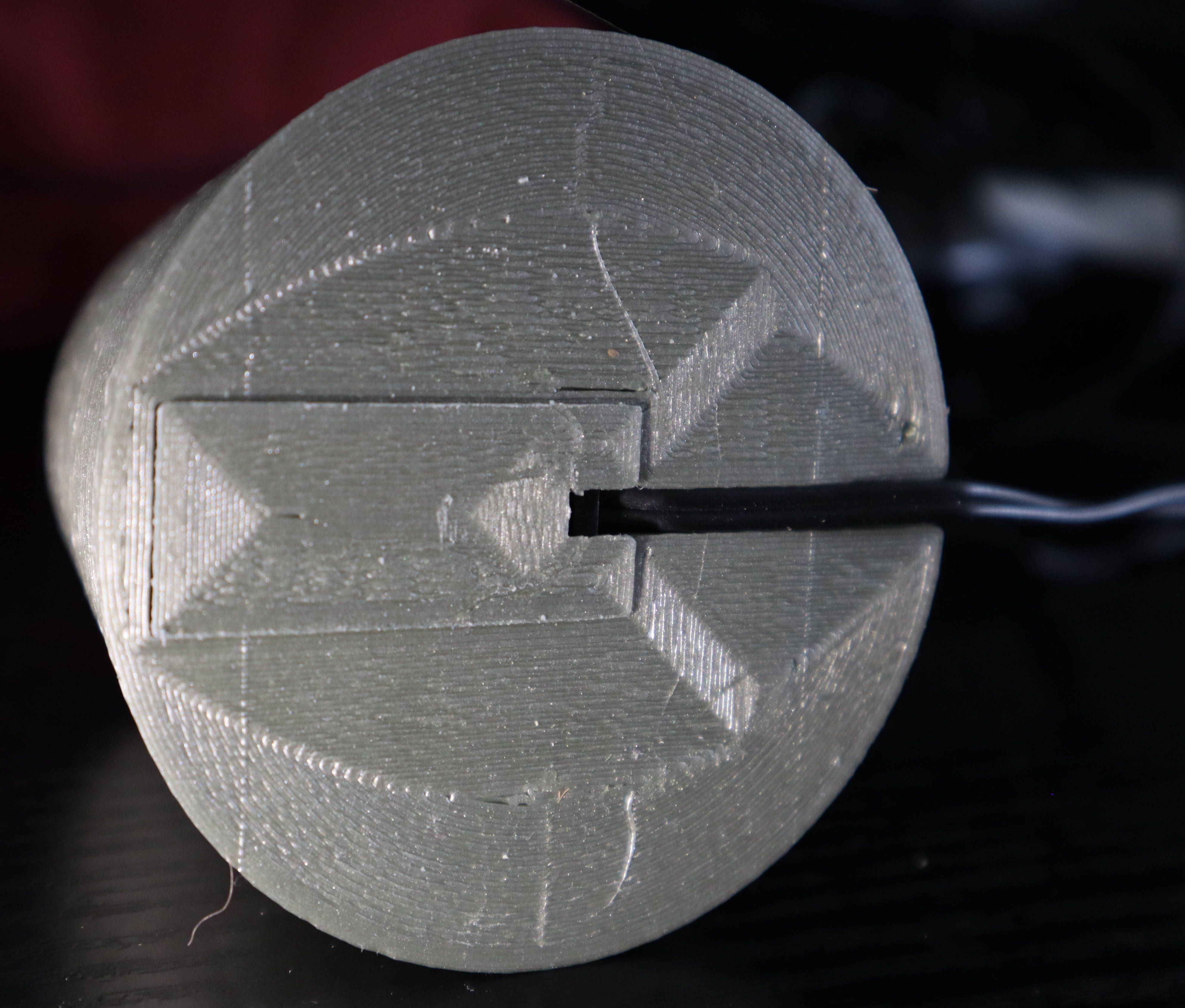

4 hours of printing time and a minute for removing the support and filing of some edges later the first print was tested in action.
- the trimmer handle fits great and can charge
- 102% scale cutout is ever so slightly too small in y direction. Since my bottom part is 16mm wide, 2% equal 0.32mm. Experience tells me I need rougly 0.2 mm on each side, so I need at least 1.025 scale. However, it results in a good press fit with very little sanding
- due to the angled trimmer position the bottom part is hard to press in directly upward. Slightly more play for the charger plug would help.
- the charge indicator is covered by the sidewall. A slit for visibility would be helpful.
- hitting the charger plug is a bit finicky but achievable. I'm not sure how I could improve this with this design, but I'll think on it.
- this has no way to coil up the charger cord while unplugged, or hold the wall wart. A future version would include this.
- A lot of the stand is empty volume. This could be reduced.
Conclusion

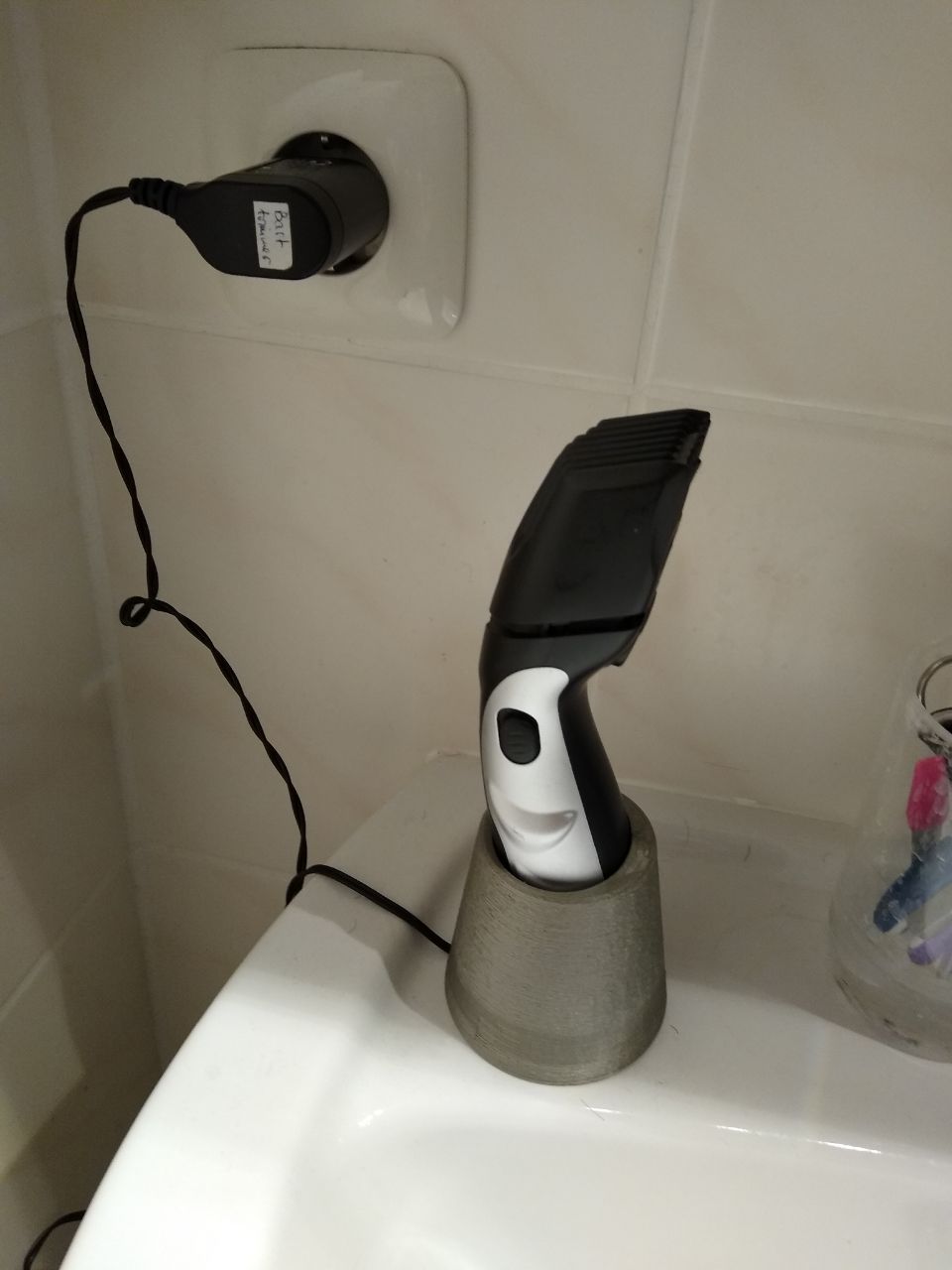

Despite the many possible improvements, I'm pretty happy how this first prototype came out. It does exactly what I set out to do, was easy to print and matches the color of the trimmer pretty well. If it breaks or I feel a huge motivation boost, I will do a second revision. But for now, I will test it a few weeks.
You can find everything on my thingiverse.
